HRC Coulings Complete Set Type F/H/B whith Rubber Spider, HRC70~HRC280
HRC Couplings
HRC Common Date
|
Bush Size |
Max Bore |
Pilot Bore |
Shoulder Width |
Hub Width |
Overall Diameter |
Hub Diameter |
Assembled Length |
Assembled Length (L) |
Keyway Screw Size |
Nominal |
Element |
WT |
|||||
|
Size |
FF,FH,HH |
FB,HB |
BB |
Torque |
Ring Dia |
Ring Width |
|||||||||||
|
d |
A |
D |
C |
A |
B |
F |
FF,FH,HH |
FB,HB |
BB |
M |
N |
E |
G |
WT |
|||
|
mm |
ins |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
Nm |
mm |
mm |
kg |
|||
|
HRC070B |
- |
32 |
- |
8 |
20.0 |
23.5 |
69 |
60 |
25.5 |
65.5 |
65.5 |
65.5 |
M6 |
31 |
31 |
18.5 |
1.00 |
|
HRC070F |
1008 |
25 |
1 |
- |
20.0 |
23.5 |
69 |
60 |
25.5 |
65.5 |
65.5 |
65.5 |
- |
31 |
31 |
18.5 |
1.00 |
|
HRC070H |
1008 |
25 |
1 |
- |
20.0 |
23.5 |
69 |
60 |
25.5 |
65.5 |
65.5 |
65.5 |
- |
31 |
31 |
18.5 |
1.00 |
|
HRC090B |
- |
42 |
- |
10 |
26.0 |
30.5 |
85 |
70 |
30.5 |
69.5 |
76.5 |
82.5 |
M6 |
80 |
32 |
22.5 |
1.17 |
|
HRC090F |
1108 |
28 |
1.1/8 |
- |
19.5 |
23.5 |
85 |
70 |
30.5 |
69.5 |
76.5 |
82.5 |
- |
80 |
32 |
22.5 |
1.17 |
|
HRC090H |
1108 |
28 |
1.1/8 |
- |
19.5 |
23.5 |
85 |
70 |
30.5 |
69.5 |
76.5 |
82.5 |
- |
80 |
32 |
22.5 |
1.17 |
|
HRC0110B |
- |
55 |
- |
10 |
37.0 |
45.5 |
112 |
100 |
45.5 |
82.5 |
100.5 |
119.5 |
M10 |
160 |
45 |
29.5 |
5.00 |
|
HRC0110F |
1610 |
42 |
1.5/8 |
- |
18.5 |
26.5 |
112 |
100 |
45.5 |
82.5 |
100.5 |
119.5 |
- |
160 |
45 |
29.5 |
5.00 |
|
HRC0110H |
1610 |
42 |
1.5/8 |
- |
18.5 |
26.5 |
112 |
100 |
45.5 |
82.5 |
100.5 |
119.5 |
- |
160 |
45 |
29.5 |
5.00 |
|
HRC0130B |
- |
60 |
- |
15 |
39.0 |
47.5 |
130 |
105 |
53.5 |
89.5 |
110.5 |
131.5 |
M10 |
315 |
50 |
36.5 |
5.46 |
|
HRC0130F |
1610 |
42 |
1.5/8 |
- |
18.0 |
26.5 |
130 |
105 |
53.5 |
89.5 |
110.5 |
131.5 |
- |
315 |
50 |
36.5 |
5.46 |
|
HRC0130H |
1610 |
42 |
1.5/8 |
- |
18.0 |
26.5 |
130 |
105 |
53.5 |
89.5 |
110.5 |
131.5 |
- |
315 |
50 |
36.5 |
5.46 |
|
HRC0150B |
- |
70 |
- |
20 |
46.0 |
56.5 |
150 |
115 |
60.5 |
107.5 |
129.5 |
152.5 |
M10 |
600 |
62 |
40.5 |
7.11 |
|
HRC0150F |
2012 |
50 |
2 |
- |
23.5 |
33.5 |
150 |
115 |
60.5 |
107.5 |
129.5 |
152.5 |
- |
600 |
62 |
40.5 |
7.11 |
|
HRC0150H |
2012 |
50 |
2 |
- |
23.5 |
33.5 |
150 |
115 |
60.5 |
107.5 |
129.5 |
152.5 |
- |
600 |
62 |
40.5 |
7.11 |
|
HRC0180B |
- |
80 |
- |
25 |
58.0 |
70.5 |
180 |
125 |
73.5 |
142.5 |
165.5 |
189.5 |
M10 |
950 |
77 |
49.5 |
16.65 |
|
HRC0180F |
2517 |
60 |
2.1/2 |
- |
34.5 |
46.5 |
180 |
125 |
73.5 |
142.5 |
165.5 |
189.5 |
- |
950 |
77 |
49.5 |
16.65 |
|
HRC0180H |
2517 |
60 |
2.1/2 |
- |
34.5 |
46.5 |
180 |
125 |
73.5 |
142.5 |
165.5 |
189.5 |
- |
950 |
77 |
49.5 |
16.65 |
|
HRC0230B |
- |
100 |
- |
25 |
77.0 |
90.5 |
225 |
155 |
85.5 |
164.5 |
202.5 |
239.5 |
M12 |
2000 |
99 |
59.5 |
26.05 |
|
HRC0230F |
3020 |
75 |
3 |
- |
39.5 |
52.5 |
225 |
155 |
85.5 |
164.5 |
202.5 |
239.5 |
- |
2000 |
99 |
59.5 |
26.05 |
|
HRC0230H |
3020 |
75 |
3 |
- |
39.5 |
52.5 |
225 |
155 |
85.5 |
164.5 |
202.5 |
239.5 |
- |
2000 |
99 |
59.5 |
26.05 |
|
HRC0280B |
- |
115 |
- |
30 |
90.0 |
105.5 |
275 |
206 |
105.5 |
207.5 |
246.5 |
285.5 |
M16 |
3150 |
119 |
74.5 |
50.05 |
|
HRC0280F |
3525 |
100 |
4 |
- |
51.0 |
66.5 |
275 |
206 |
105.5 |
207.5 |
246.5 285.5 |
- |
3150 |
119 |
74.5 |
50.05 |
|
|
HRC0280H |
3525 |
100 |
4 |
- |
51.0 |
66.5 |
275 |
206 |
105.5 |
207.5 |
246.5 285.5 |
- |
3150 |
119 |
74.5 |
50.05 |
|

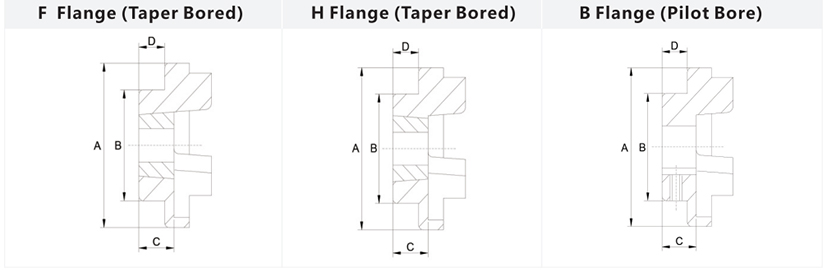

HRC semi elastic couplings for general purpose use. Available as F flange type, bush mounted from inside, and H flange bush, inserted from outside face. Also B flange type.
Taper Bush Fixing Allows Quick and Easy Assembly
Simple Alignment by Straight Edge
Accommodates Minor Misalignment
Standard Nitrile Rubber Insert
Temperature Range -40°C to +100°C
Note
One complete coupling comprises of two flanges and one insert
Warning
Not FRAS approved.
