Sugar Mill Chains, and with Attachments

In the production system of the sugar industry, chains can be used for sugarcane transportation, juice extraction, sedimentation and evaporation. At the same time, the high wear and strong corrosion conditions also put forward higher requirements for the quality of the chain.Also,we have many kinds of attachments for these chains.


Product Detail

Product Tags

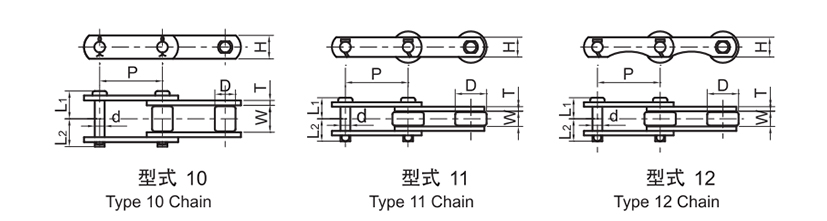

SUGAR MILL CHAINS

Sugar Mill Chains

GL

Chain

No.

Type

Pitch

Roller

Pin

Link plate

Ultimate tensie strength Min.(kg)

Weight per meter kg/m

P

D

W

d

L1

L2

T

H

SS40H

8

78.11

31.75

18.10

15.88

40.05

46.65

8.00

38.00

19500

10.20

SS124H

8

103.20

44.45

49.10

22.23

57.00

66.00

12.70

54.00

57000

22.40

SS266

8

103.20

44.45

49.20

22.23

57.00

66.00

12.70

54.00

54000

22.50

SS1113

9

102.60

50.80

37.50

17.50

38.00

45.00

6.30

38.10

9500

10.20

SS1124

9

101.60

50.80

32.00

12.70

37.70

42.80

7.90

38.10

10000

11.00

SS1125

9

101.60

50.80

32.60

17.50

39.50

45.10

7.90

44.50

15500

12.70

SS1130

9

152.40

63.50

37.60

19.05

38.50

45.60

6.30

50.80

14000

12.80

SS2184

9

152.40

76.20

34.90

22.23

44.00

53.00

9.50

50.80

34700

18.40

Sugar Mill Chains1

GL Chain

No.

Type

Pitch

Roller

Pin

Link plate

Ultimate tensie strength Min.(kg)

Weight per meter kg/m

P

D

W

d

L1

L2

T

H

SS205

10

78.11

31.80

37.10

15.88

40.50

47.50

7.90

38.10

9900

10.00

SS1131

11

152.40

76.20

38.10

18.94

46.70

51.60

10.00

50.80

19200

20.50

SS2124

12

152.40

69.80

40.00

19.05

46.10

53.60

9.50

52.90

12500

26.00

SS2188

11

101.60

44.45

33.85

15.88

39.90

46.10

7.90

41.30

11400

11.00

SS2315

11

228.60

76.20

43.00

22.00

49.00

58.00

9.50

63.50

28000

18.30

ATTACHMENT FOR SUGAR MILL CHAINS

Dimension Diagram of A22 or A42 Attachment

Atta. No.

Chain No.

Dimensions

Weight kg/m

Sugar Mill Chains2

B

C

F

E

O

T

A22

SS1125

50.80

54.00

72.30

38.10

16.70

12.70

15.90

A42

SS1113

50.80

60.30

80.30

49.50

16.67

13.00

12.40

A42

SS1124

50.80

54.00

71.50

42.00

06.67

12.70

12.70

A42

SS1130

76.20

67.00

82.60

44.50

16.70

16.00

19.20

A42

SS2184

76.20

66.70

92.50

50.80

17.50

15.00

20.50

Sugar Mill Chains3

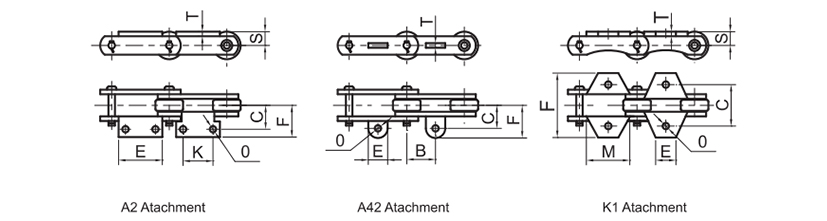

Dimension Diagram of A2, A42, K1 Attachment

Atta.

No.

Chain No.

Dimensions

Weight kg/m

S

B

C

F

K

E

M

O

T

A2

SS2315

45.00

76.20

105.50

139.70

178.00

-

13.50

9.50

22.30

A42

SS1131

-

76.20

66.00

91.40

-

50.80

-

17.50

16.00

20.50

K1

SS2124

41.50

-

111.00

146.00

-

E1-45.0

E-65.00

120.00

16.00

9.50

34.40

Sugar Mill Chains4

Dimension Diagram of Flight Wing Attachment(C Type)

Atta. No.

Dimensions

Weight kg/m

A

B

C

D

G

H

L

M

01

02

T1

T2

OC

49.10

19.00

30.10

20.60

14.30

44.50

111.00

84.10

11.10

16.70

7.90

7.90

0.44

1C

62.50

22.90

39.60

25.40

14.30

50.80

127.0

88.90

14.00

17.00

7.90

9.50

0.50

17C

50.00

15.00

35.00

27.80

11.10

48.00

111.00

76.20

15.00

11.10

8.00

8.00

0.50

Sugar Mill Chains5

CHAINS FOR SUGAR PLANT

GL

Chain

No.

Type

Pitch

Roller

Pin

Link plate

Min.(kg)

 Weight per meter kg/m

Acailable attachment No.

D

W

d

L

H

T

mm

mm

mm

kg

A2

K2

AS2

AS20

0904

A

101.60

50.80

29.40

17.50

79.40

44.50

7.90

18150

16.07

0

0

0

0

0906

A.B

152.40

69.90

36.50

19.00

95.30

50.80

9.50

18150

16.67

0

0

0

0

09060

A.B

152.40

69.90

36.50

19.00

95.30

50.80

9.50

27200

16.67

0

0

0

0

09061

A.B

152.40

69.90

36.50

19.00

95.30

57.20

9.50

38600

17.86

0

0

SS600

B

152.40

69.90

36.50

22.20

100.00

58.40

9.50

45400

Attachment only

0

09063

A

152.40

76.20

36.50

22.80

101.60

61.90

10.30

63500

0

Sugar Mill Chains6

CHAINS FOR TABACOO BAKING MACHINE

GL

Chain

No.

Pitch

Roller dia.

 Pin dia.

Inside width

Plate depth

Thickness of Plate

Attachment dimensions

Ultimate tensie strength

P

D

d

W

H

T

a

b

c

0

t

X

kN

SL200

200

50

12.00

24.10

30

6

130

30

41.60

8

12.70

2.50

130

SLKG232

200

50

12.00

24.50

30

6

127

27

43.50

7

12.70

2.50

130

SLKG235

200

50

14.00

24.50

35

6

127

27

43.50

7

12.70

2.50

160

SLKG275

200

60

15,90

28.00

45

6

127

27

46.75

7

12.70

2,50

190
